Basic Info.
Product Description
Viking has the ambition to be the hydraulic and lubricating oil filtration, separation and purification experts.
we have the hydraulic and lube oil filter and oil filter cartridge/elements.
it is widely used in industry manufacturing and oil and gas.
we have the
high pressure oil filter
Low pressure oil filter
Suction/retrun In-tank oil filter
inline cartridge filter
oil filter cartridge/elements
Medium or Low pressure VKXL(M) hydraulic recycling /return oil small flow rate oil filter
Structure:
2 units Single Cylinder oil Filter and transfer valve
Application:
Hydraulic System
high pressure oil filter
VKZH(E) pipeline type high pressure oil filter for hydraulic and lube
Design pressure rating: 22/32Mpa
Nominal flow rate:10/25/40/63/100/160/250/400/630/800L/min
Filter material: carbon steel
Filtration accuracy: 3um/5um/10um/25um
Filter elements material:High efficiency glass fiber/stainless steel metal mesh
Pressure Difference Alarm: Plug or Electrical switch or SPDT /0.35bar sending
Sealing Material:Nitrile Rubber or Fluororubber
Indtallation Type:Threaded connection/Flange connection
Plate connection/Flip tube/Flip flange type/Flip flange type A
Flip flange type B/Flip-chip
| Model | The way to(mm) | Nominal flow L/min | Nominal pressure MPa | Precision(um) | Filter pressure loss | Transmitter power(v/w) | Connection method | Filter element model | |
| Initial pressure difference | Maximum pressure difference | ||||||||
| VKZH10DN*GMH | 15 | 10 | 32 | 3 | 0.8bar | 3.5bar | 24V/48W | Tubular | VER9822K*3H |
| VKZH25DN*GMH | 25 | VER9822K*6H | |||||||
| VKZH40DN*GMH | 20 | 40 | 1bar | VER1602K*4H | |||||
| VKZH63DN*GMH | 63 | VER1602K*7H | |||||||
| VKZH100DN*GMH | 25 | 100 | VER1602K*9H | ||||||
| VKZH160DN*GMH | 32 | 160 | 1.2bar | VER3325K*10H | |||||
| VKZH250DN*GMHF | 40 | 250 | Flange type F | VER3325K*13H | |||||
| VKZH400DN*GMHF | 50 | 400 | 1.5bar | VER6301K*14H | |||||
| VKZH630DN*GMHF | 53 | 630 | VER6301K*16H | ||||||
| VKZH800DN*GMHF | 800 | VER6301K*22H | |||||||
| VKZH10DN*GMHB | 15 | 10 | 0.8bar | Plate B | VER9822K*3H | ||||
| VKZH25DN*GMHB | 25 | VER9822K*6H | |||||||
| VKZH40DN*GMHB | 20 | 40 | 1bar | VER1602K*4H | |||||
| VKZH63DN*GMHB | 63 | VER1602K*7H | |||||||
| VKZH100DN*GMHB | 25 | 100 | VER1602K*9H | ||||||
| VKZH160DN*GMHB | 32 | 160 | 1.2bar | VER3325K*10H | |||||
| VKZH250DN*GMHB | 40 | 250 | VER3325K*13H | ||||||
| VKZH400DN*GMHB | 50 | 400 | 1.5bar | VER6301K*14H | |||||
| VKZH630DN*GMHB | 630 | VER6301K*16H | |||||||
| VKZH10DN*GMHDL | 15 | 10 | 0.8bar | Flip tube DL | VER9822K*3H | ||||
| VKZH25DN*GMHDL | 25 | VER9822K*6H | |||||||
| VKZH40DN*GMHDL | 20 | 40 | 1bar | VER1602K*4H | |||||
| VKZH63DN*GMHDL | 63 | VER1602K*7H | |||||||
| VKZH100DN*GMHDL | 25 | 100 | VER1602K*9H | ||||||
| VKZH160DN*GMHDL | 32 | 100 | 1.5bar | VER3325K*10H | |||||
| VKZH10DN*GMHDF | 15 | 10 | 0.8bar | Flip Flange type DF | VER9822K*3H | ||||
| VKZH25DN*GMHDF | 25 | VER9822K*6H | |||||||
| VKZH40DN*GMHDF | 20 | 40 | 1bar | VER1602K*4H | |||||
| VKZH63DN*GMHDF | 63 | VER1602K*7H | |||||||
| VKZH100DN*GMHDF | 25 | 100 | VER1602K*9H | ||||||
| VKZH160DN*GMHDF | 32 | 160 | 1.2bar | VER3325K*10H | |||||
| VKZH250DN*GMHDF | 40 | 250 | VER3325K*13H | ||||||
| VKZH400DN*GMHDF | 50 | 400 | 1.5bar | VER6301K*14H | |||||
| VKZH630DN*GMHDF | 53 | 630 | VER6301K*16H | ||||||
| VKZH800DN*GMHDF | 800 | VER6301K*22H | |||||||
| VKZH10DN*GMHDFA | 15 | 10 | 32 | 3 | 0.8bar | 3.5 bar | 24V/48W | Flip Flange type A Type | VER9822K*3H |
| VKZH25DN*GMHDFA | 25 | VER9822K*6H | |||||||
| VKZH40DN*GMHDFA | 20 | 40 | VER1602K*4H | ||||||
| VKZH63DN*GMHDFA | 63 | 1bar | VER1602K*7H | ||||||
| VKZH100DN*GMHDFA | 25 | 100 | VER1602K*9H | ||||||
| VKZH160DN*GMHDFA | 32 | 160 | 1.2bar | VER3325K*10H | |||||
| VKZH250DN*GMHDFA | 40 | 250 | VER3325K*13H | ||||||
| VKZH400DN*GMHDFA | 50 | 400 | 1.5bar | VER6301K*14H | |||||
| VKZH630DN*GMHDFA | 53 | 630 | VER6301K*16H | ||||||
| VKZH800DN*GMHDFA | 800 | VER6301K*22H | |||||||
| VKZH10DN*GMHDFB | 15 | 10 | 0.8bar | Flip Flange type B Type | VER9822K*3H | ||||
| VKZH25DN*GMHDFB | 25 | VER9822K*6H | |||||||
| VKZH40DN*GMHDFB | 20 | 40 | VER1602K*4H | ||||||
| VKZH63DN*GMHDFB | 63 | 1bar | VER1602K*7H | ||||||
| VKZH100DN*GMHDFB | 25 | 100 | VER1602K*9H | ||||||
| VKZH160DN*GMHDFB | 32 | 160 | 1.2bar | VER3325K*10H | |||||
| VKZH250DN*GMHDFB | 40 | 250 | VER3325K*13H | ||||||
| VKZH400DN*GMHDFB | 50 | 400 | 1.5bar | VER6301K*14H | |||||
| VKZH630DN*GMHDFB | 53 | 630 | VER6301K*16H | ||||||
| VKZH800DN*GMHDFB | 800 | VER6301K*22H | |||||||
| VKZH10DN*GMHBD | 15 | 10 | 0.8bar | Flip-chip BD | VER9822K*3H | ||||
| VKZH25DN*GMHBD | 25 | VER9822K*6H | |||||||
| VKZH40DN*GMHBD | 20 | 40 | 1bar | VER1602K*4H | |||||
| VKZH63DN*GMHBD | 63 | VER1602K*7H | |||||||
| VKZH100DN*GMHBD | 25 | 100 | VER1602K*9H | ||||||
| VKZH160DN*GMHBD | 40 | 160 | 1.2bar | VER3325K*10H | |||||
| VKZH250DN*GMHBD | 250 | VER3325K*13H | |||||||
| VKZH400DN*GMHBD | 50 | 400 | 1.5bar | VER6301K*14H | |||||
| VKZH630DN*GMHBD | 630 | VER6301K*16H | |||||||
| VKZH800DN*GMHBD | 800 | VER6301K*22H | |||||||
VKGH Roof type double cylinder high pressure oil filter
Design pressure rating: 32Mpa
Nominal flow rate: 30/60/110/160/240/330/500/660L/min
Filter material: carbon steel
Filtration accuracy: 3um/5um/10um/25um
Filter elements material:High efficiency glass fiber/stainless steel metal mesh
Pressure Difference Alarm: Plug or Electrical switch or SPDT /0.35bar sending
Sealing Material:Nitrile Rubber or Fluororubber
| Model | The way to(mm) | Nominal flow(L/min) | Nominal pressure(MPa) | Filtration accuracy(um) | Transmitter power(v/w) | Connection method | Filter element model |
| VKGH30DN*GMH |
20 | 30L/min | 32 | 3 | 24V/50W |
Flange | VED2102K*4H |
| VKGH60DN*GMH | 60L/min | VED9802K*3H | |||||
| VKGH110DN*GMH | 110L/min | VED9802K*6H | |||||
| VKGH160DN*GMH | 32 | 160L/min | VED1624K*4H | ||||
| VKGH240DN*GMH | 240L/min | VED1624K*7H | |||||
| VKGH330DN*GMH |
50 | 330L/min | VED3300K*6H | ||||
| VKGH500DN*GMH | 500L/min | VED3300K*10H | |||||
| VKGH660DN*GMH | 660L/min | VED3300K*13H |
VKFH series valve block filter seriesm
Design pressure rating: 32Mpa
Nominal flow rate: 30/60/110L/min
Filter material: carbon steel
Filtration accuracy: 3um/5um/10um/25um
Filter elements material:High efficiency glass fiber/stainless steel metal mesh
Pressure Difference Alarm: Plug or Electrical switch or SPDT /0.35bar sending
Sealing Material:Nitrile Rubber or Fluororubber
| Model | Diameter (mm) | Norminal Flow Rate (L/min) | Norminla Pressure (MPa) | Filtration Accuracy (um) | Transmitter Power Rate(v/w) | Filter Elements Type |
| VKFH30DN*GMH | 6 | 30L/min | 32 | 3,5 10,25 | 220V/50W 220v/50w | VED2102K*4H |
| VKFH60DN*GMH | 10 | 60L/min | VED9802K*3H | |||
| VKFH110DN*GMH | 110L/min | VED9802K*6H |
VKCH side plate connection high pressure oil filter
Design pressure rating: 31.5Mpa
Nominal flow rate: 30/60/110/160/240/330/500/660L/min
Filter material: carbon steel
Filtration accuracy: 3um/5um/10um/25um
Filter elements material:High efficiency glass fiber/stainless steel metal mesh
Pressure Difference Alarm: Plug or Electrical switch or SPDT /0.35bar sending
Sealing Material:Nitrile Rubber or Fluororubber
| Model | The way to | Nominal flow | Nominal pressure | Filtration accuracy | Transmitter power | import and export | Filter element model |
| VKCH30DN*GMH | 16 | 30L/min | 32 | 3 | 220V/50W | 24×2.4 | VED2102K*4H |
| VKCH60DN*GMH | 20 | 60L/min | 5 | 32×3.1 | VED9802K*3H | ||
| VKCH110DN*GMH | 110L/min | 10 | VED9802K*6H | ||||
| VKCH160DN*GMH | 32 | 160L/min | 25 | 40×3.1 | VED1624K*4H | ||
| VKCH240DN*GMH | 240L/min | VED1624K*7H | |||||
| VKCH330DN*GMH | 330L/min | VED3300K*6H | |||||
| VKCH500DN*GMH | 500L/min | VED3300K*10H | |||||
| VKCH660DN*GMH | 660L/min | VED3300K*13H |
Suction/retrun In-tank oil filter
Purpose: The filter is used for fine filtration of the return oil of the hydraulic system to filter the impurities in the oil and keep the oil flowing back to the tank clean.
Feature: Compact design,convenient installation,high flow rate,small pressure loss,easy filter elements change.
Flow Rate:25/40/63/100/160/250/400/630/800/1000L/min
Cylinder:Double or signle
Filtration Precision:3um/5um/10um/25un
Filter elements material:High efficiency glass fiber/stainless steel metal mesh
Pressure Difference Alarm: Plug or Electrical switch or SPDT /0.35bar sending
Sealing Material:Nitrile Rubber or Fluororubber
Pressure Class:1.6MPa

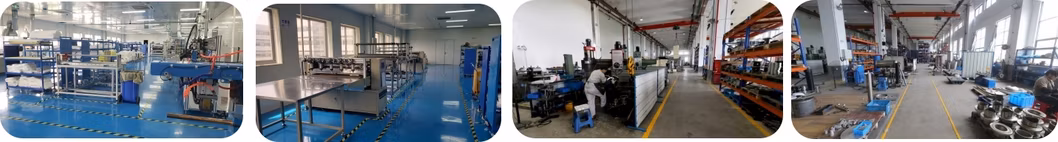

1. Independent product design departments and laboratories
2. Technicians have more than ten years of R & D background of international famous companies in the hydraulic, lubrication and water treatment industries.
3. ISO9001 and SGS Qualification and Patent Certificate
4. Our oil filters elemenscan fully replace the well known brand like PALL, HYDAC, PARKER, INTERNORMEN, MAHLE and so on.
5. Well known cooperator: GE, MAN, LINDE, SIMENS, ALSTOM, AIRLIQUE,Atlas,Hitachi Group, Mitsubishi Group,Hangzhou Turbine,Domgfang Electric (DEC)
6. Widely Application Area: Metallurgical, petrochemical, electric power, engineering machinery and mining enterprises
7. Quality Control: IQC-IPQC-FQA-OQC
Changzhou Viking has cooperate so many international and domestic famous group and company .
Changzhou Viking has enjoyed good reputation in hydraulic and lube around the world.
Changzhou Viking Filtration & Seperation & Purification Series Products has been widely applied in gas & oil, industry manufacturing, Metallurgical, petrochemical, electric power, engineering machinery and mining enterprises.
